PE+GM Battery Separator
Home / Product / PE Battery Separator
Product Center

PE Battery Separator

AGM Battery Separator

PVC Battery Separator

EFB Battery Separator

Tubular Battery Gauntlets

Battery Flame Arrestor

Vent Plug For Battery

Battery Indicator

Battery Additive

Rubber Components For Battery

Battery Container

Battery Terminal

Charger and Discharger Machine

Lead Acid Battery Acid Gel Filler

Automatic Enveloping And Stacking Machine

Battery Assembly Line

Battery Testing Machine

Battery Environmental Protection Machine

Other Battery Machines

Hot Product

PE Battery Separator

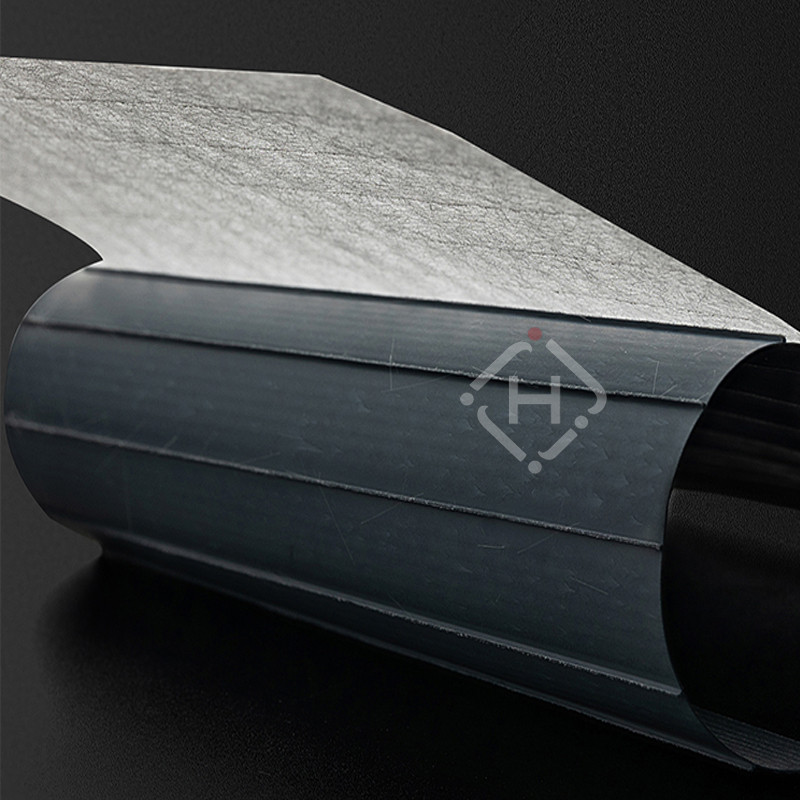

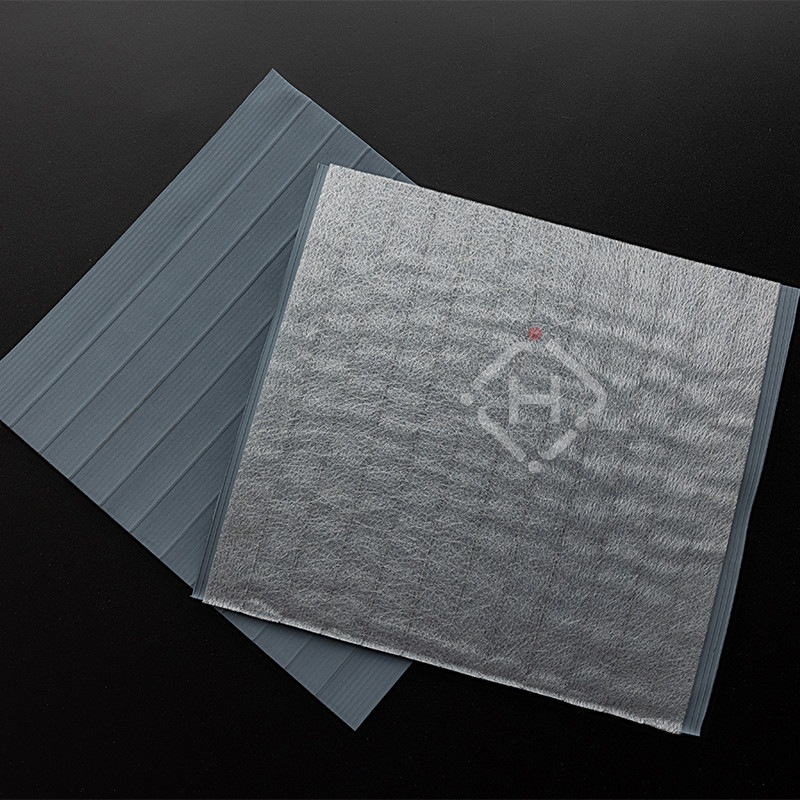

PE+GM Battery Separator

PE+GM battery separator would enhance the separator's oxidation resistance by separating the separator from the plate. The flat glass mat also will prevent the plate active material from shedding and extend the battery's life. Adapt to high vibration and deep discharge batteries, such as batteries for engineering machinery, cars and tractors.
Inquiry Now
PE+GM Battery Separator Add To Cart

follow us

  • Overview

  • Specifications

  • FAQ

  • Quick Details


    Place of Origin: China

    Brand Name: JHTD

    Model Number: PE+GM battery separator

    Type: Insulation Film, polyethylene separator

    Material: PE and fiberglass mat

    Tensile Strength: 8N

    Usage: Automotive, Industrial

    Size: General / Customized

    Porosity: ≥55%

    Moisture Content: ≤4.0%

    Dimension Stability: ≤1.0%

    Acid Weight Loss: ≤4.0%

    Fe Content: ≤0.010%

    Cl Content: ≤0.030%


    Feature


    It is a composite battery material specially engineered for extra heat and oxidation resistance as such, it may be termed as “Tropicalised Separator” highly suited for high temperature abusive conditions. The unique glass fiber -polymer integration affords additional elements of plate protection and extended battery life.


  • TYPE

    O/A Thickness (mm)

    Width

    (mm)

    Roll length

    (mm)

    PE

    GM

    PE+GM

    ROLL

    MOTOCYCLE

    0.8-1.2

    0.3-0.8

    1.1-2.0

    116-126

    500-800

    0.8-1.2

    0.3-0.8

    1.1-2.0

    150-170

    500-800

    AUTOMOTIVE

    0.6-0.9

    0.3-0.8

    0.9-1.7

    500-200

    500-800

    CUT PIECE/ ENVELOPE

    TO MEET YOUR REQUIREMENT


    No.

    Item

    Unit

    Specification

    1

    O/A Thickness

    mm

    (0.9-2.0)±0.1

    2

    Moisture Content

    %

    ≤4.0

    3

    Wet-out Rate

    Sec.

    ≤30

    4

    ER

    Ω.dm2

    ≤0.0015

    5

    Porosity

    %

    ≥55

    6

    Acid Weight.Loss

    %

    ≤4.0


    Thickness, width and length and type are according to the customer ‘s request



  • Q1: Is there back mini rib?

    It depends on customer’s requirement. For thickness more than 1.3 mm, there must be back mini rib.


    Q2: What is the rib style of the separator?

    We can communicate according to customer’s drawing or picture of separator.
