AGM Battery Separator
AGM Battery Separator Piece
follow us
Overview
Specifications
FAQ
Quick Details
Place of Origin: China
Brand Name: JHTD
Model Number: AGM battery separator plate
Type: Insulation Sheet
Material: AGM
Size: General / Customize
Packaging: Cartons or plastic bags
Application: Automotive, ups
Battery Size: AGM battery
Weight: 0.01kgs
Sealed Type: Sealed
Design life: 3-5 Years
Feature
Our AGM battery separator adopt AGM technology, it can effectively prevent electrolyte stratification, so as to increase the deep cycle life (up to 3 times that of ordinary batteries) and service life of batteries.
On the other hand, AGM separator has better low temperature performance because of its lower resistance.
AGM Battery Separator Executive Standard
Executive standard
GB/T28535-2012
No.
Inspection items
Unit
Standard values
1
Tensile Strength
KN/m
≤2.00mm
≥0.42d'KN/m
>2.0mm
≥0.84KN/m
2
Quantification
g/(m2• mm)
100Kpa
180-230
3
Resistance
Ω•dm2
≤0.00040
4
Volume Porosity
%
≥90
5
Max Pore size
µm
≤22
6
Capillary Suction Acid Height
mm
mm/5min≥75
7
Weight Loss in Acid-Soaking
%
≤3.0
8
Restore KmnO4
ml/g
≤5
9
Fe+ Content
%
≤0.003
10
Cl Content
%
≤0.002
12
Pressurized Acid Absorption
g/g
≥5.5
13
Acid Resistance
min
≥3
14
Ignition Loss
%
≤1
15
Wet the spring back
%
≤7.5
TIPS:
This standard is reference standard.
We can produce the products according to customers’ requirements.

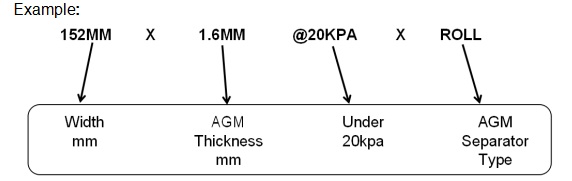

AGM Fiberglass Separator Roll Type Nomenclature:
Thickness, width and length and type are according to the customer‘s request.
Q: What pressure is the thickness measured at?
A: It depends on customer’s requirement. Usually it is @20KPA or @100KPA.
Q: Are the separator the same for different applications?
A: Separator for start-stop battery and UPS battery are not the same.
