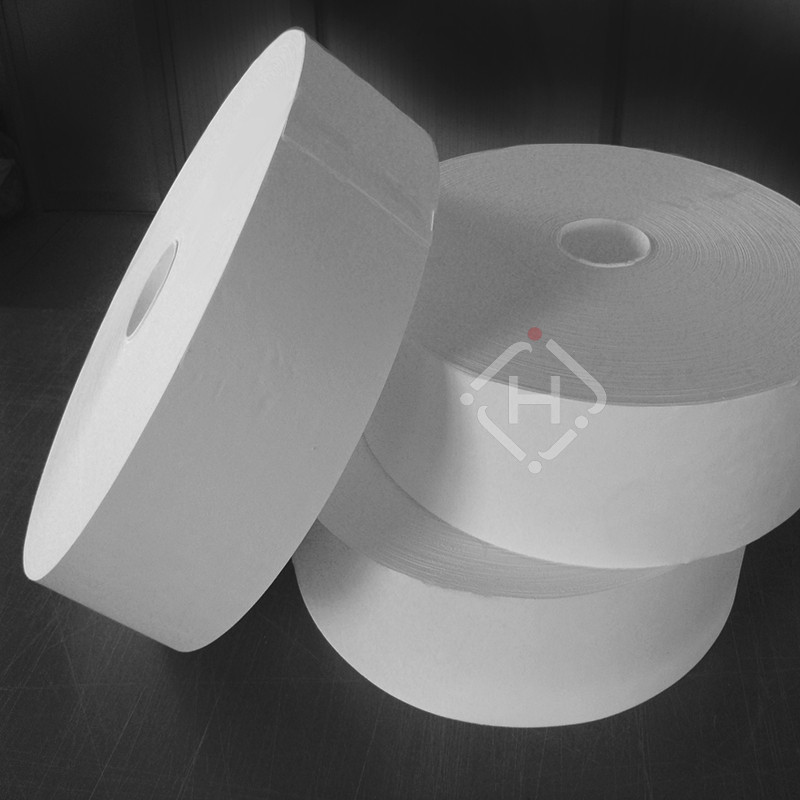

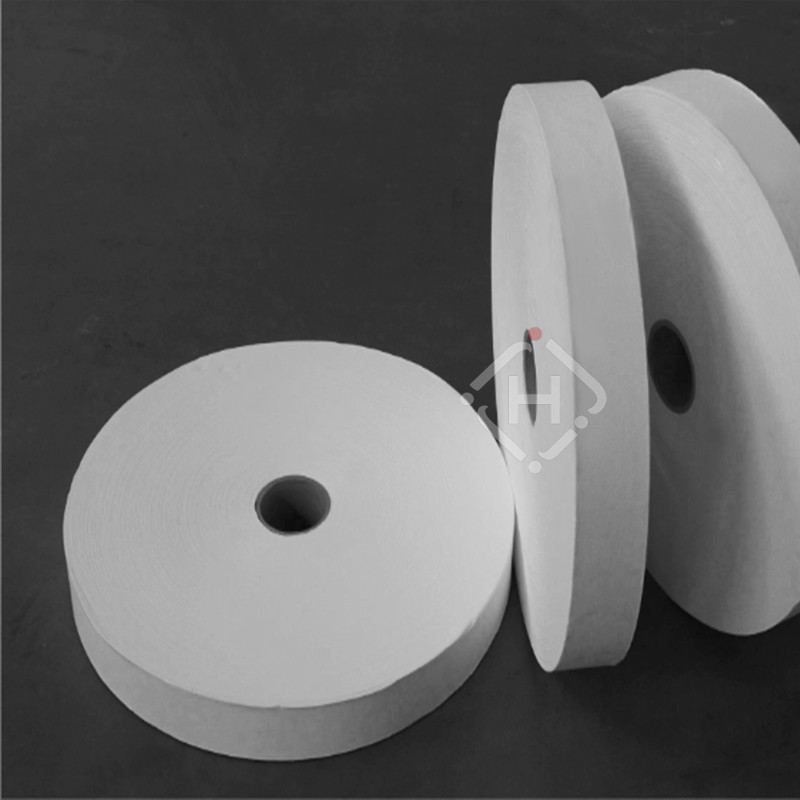

AGM Battery Separator Roll

AGM Battery Separator

AGM Battery Separator Roll

AGM battery separator is one kind of environmental-protection material which is made from micro glass fiber(Thickness is 0.5-10 mm). It is white, innocuity, tastelessness and specially used in Value Regulated Lead-Acid batteries(VRLA batteries).
Inquiry Now
AGM Battery Separator Roll Add To Cart

follow us

  • Overview

  • Specifications

  • FAQ

  • Quick Details


    Place of Origin: China

    Brand Name: JHTD

    Model Number: AGM battery separator roll

    Type: Insulation Sheet

    Material: AGM

    Size: General / Customized

    Application: Automotive, ups

    Battery Size: AGM battery

    color: pure white

    Design life: 3-5 Year

    Usage: Battery production materials

    Hardness:Soft

    Thickness:7-32um

    Appearance: Clean without wrinkles


    Feature


    Our AGM separator is endowed with the advantages of quick fluid absorption, good water permeability, large surface area, high porosity, good acid resistance and antioxidance, low electric resistance, etc. We adopt advanced technology to meet the high quality requirement.



  • AGM Battery Separator


    Product Testing Report


    Executive standard

    GB/T 28535-2018

    No.

    Testing Items

    Company

    Standard

    Measured Results

    Conclusion

    1

    Tensile Strength

    kN/m

    ≥0.84

    1.96

    Standard

    2

    Resistance

    Ω.d㎡

    ≤0.00121

    0.00119

    Standard

    3

    Max pore diameter

    μm

    ≤22

    17.5

    Standard

    4

    Wet pressure holding capacity

    --

    ≥75%

    78%

    Standard

    5

    Grammage

    g/㎡.mm

    160.0±7

    154.6

    Standard

    6

    Capillary acid absorption height

    mm

    ≥80mm/5min

    ≥720mm/24h

    86mm/5min

    720mm/24h

    Standard

    7

    Acid loss

    %

    ≤3.0%

    2.8%

    Standard

    8

    Acid absorption under pressure

    g/g

    ≥550%

    602%

    Standard

    9

    Iron content

    %

    ≤0.005%

    0.00066%

    Standard

    10

    Chlorine content

    %

    ≤0.003%

    0.0021%

    Standard

    11

    Water content

    %

    ≤1.0%

    0.52%

    Standard

    12

    Ignition loss

    %

    ≤1.0%

    0.20%

    Standard

    13

    Reduced potassium permanganate

    mL/g

    ≤5.0

    0.56

    Standard

    14

    Elongation at break

    --

    ≥2%

    3.8%

    Standard

    Draw a conclusion according to the test standard:    OK





  • Q: What pressure is the thickness measured at?

    A: It depends on customer’s requirement. Usually it is @20KPA or @100KPA.


    Q: Are the separator the same for different applications?

    A: Separator for start-stop battery and UPS battery are not the same.
