Product features

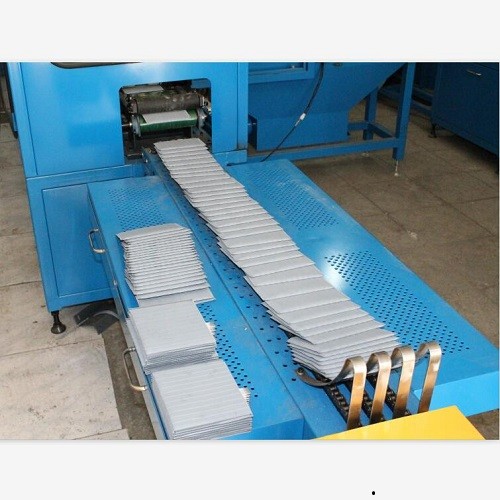

- Automatic Enveloping Machine is a special equipment designed for automobile lead-acid battery.

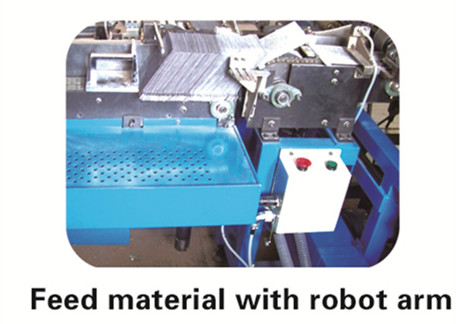

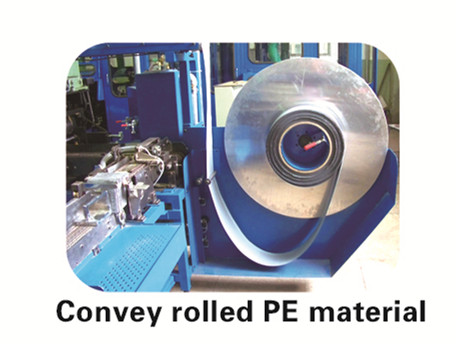

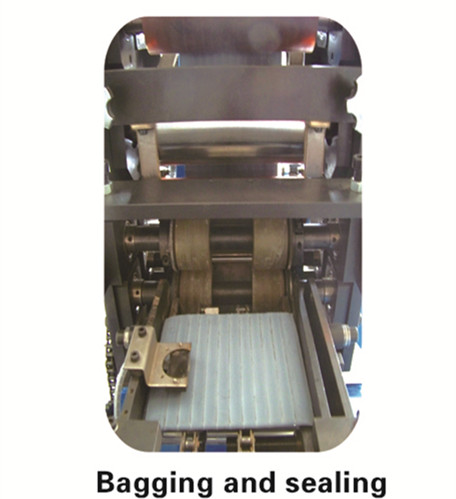

- The automatic enveloping machine can complete different work such as automatically feeding, PE separator feeding, fixed length slitting, plate folding,etc. for multiple kinds of plates continuously. It is with high efficiency, fast speed, convenient operation, quick structure adjusting, laborsaving, environmental protection and energy conservation.
- This is equipment can adapt manual and automatic two working procedures,and can set operating parameters on operation panel.it chooses automatic working procedure in the normal operation condition.
Production pace: 65 pieces/min
Kind of plate: automobile lead-acid battery
applicable specification: width 100-148mm / height 100-156mm / thickness 1.2-3.2mm
Equipment power: 380VAC 50HZ 3.5KW
Size: L4870 x W1350 x H1750mm
Equipment weight: about 1700kg
External dust collection volume should be larger than: 5800m3/h
