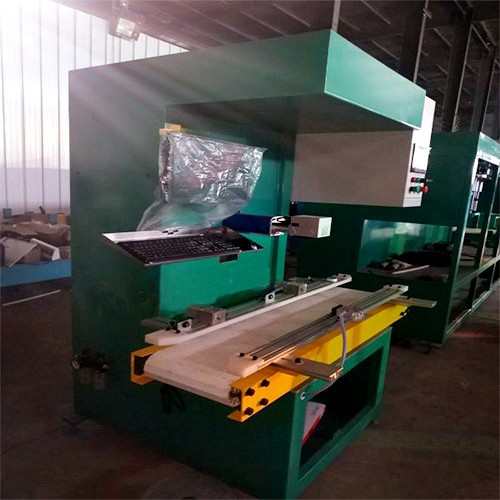

JHB-900J Fully Automatic Laser Coding Machine
Product features
1. Application: Used for marking the date and serial number of car/tubular battery before delivery from factory.
2. Operation: After pre-setting the factory code, the machine will automatically feed the battery into the machine. The battery is accurate positioning through the photoelectric induction, the machine can automatically complete the factory coding, and output the battery automatically. The next battery is also the same cycle, serial number can be carried into a bit.
3. Features: Numbers, English and serial Numbers can be engraved. Font size can be adjusted by the computer within a certain range.
4. Main configuration: A3 steel frame, Laser marking machine, Japanese Mitsubishi PLC, Delta color touch screen display, Taiwan technology pneumatic components, and well-known brands such as Schneider and CHINT and so on low-voltage electrical appliances.
Power: AC380V, 50Hz, 1KW
Air source: 0.1m3/min, 0.6Mpa
Volume(L×W×H): 1500*1200*1900mm
Weight: 500kg
Working table height: 720±25mm, and it can be adjusted.
Running direction: As per customers’ requirement.
