Battery Indicator

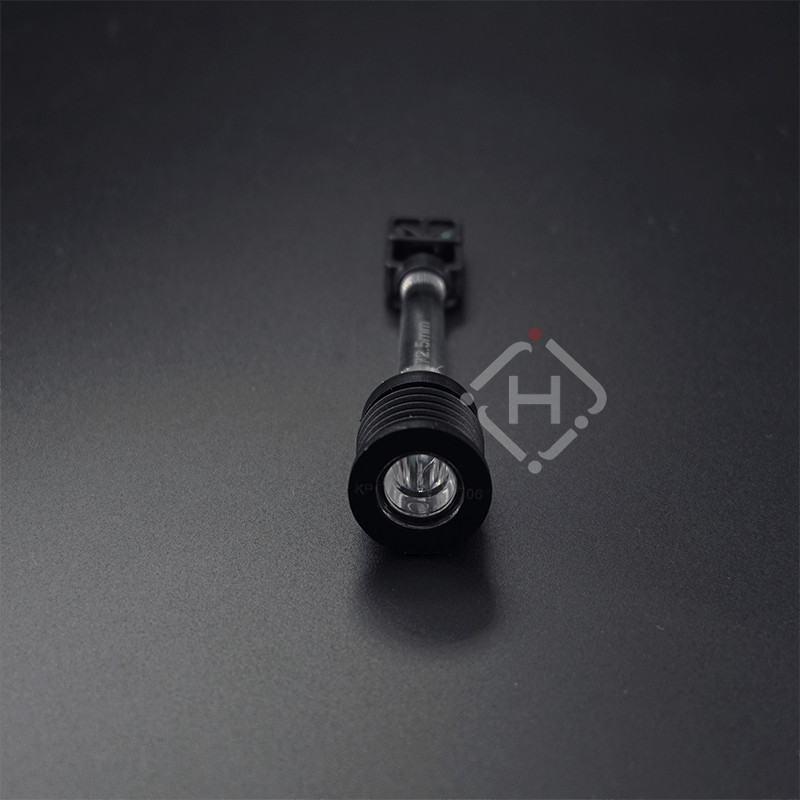

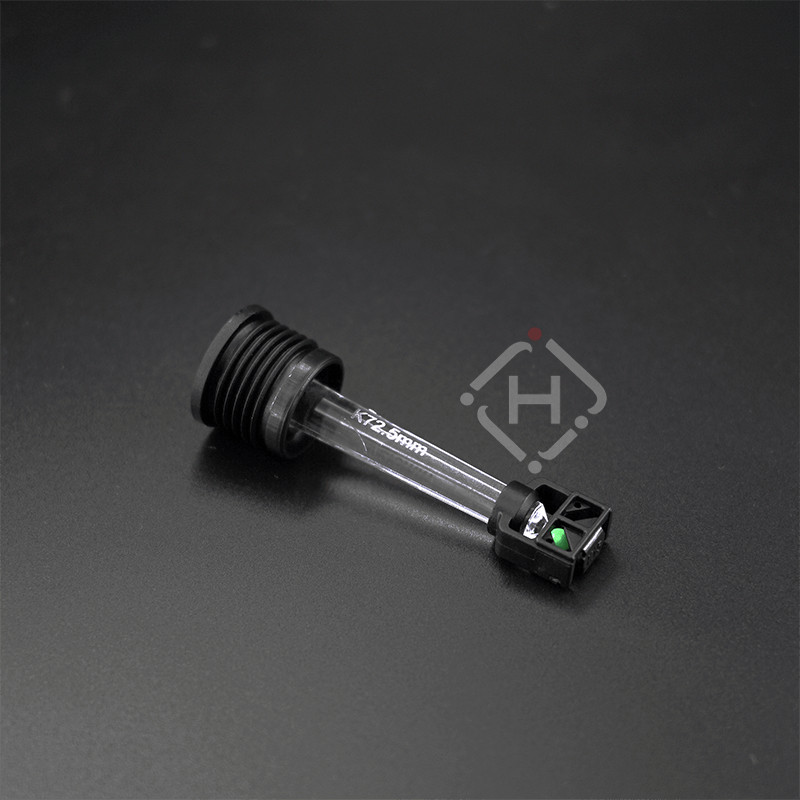

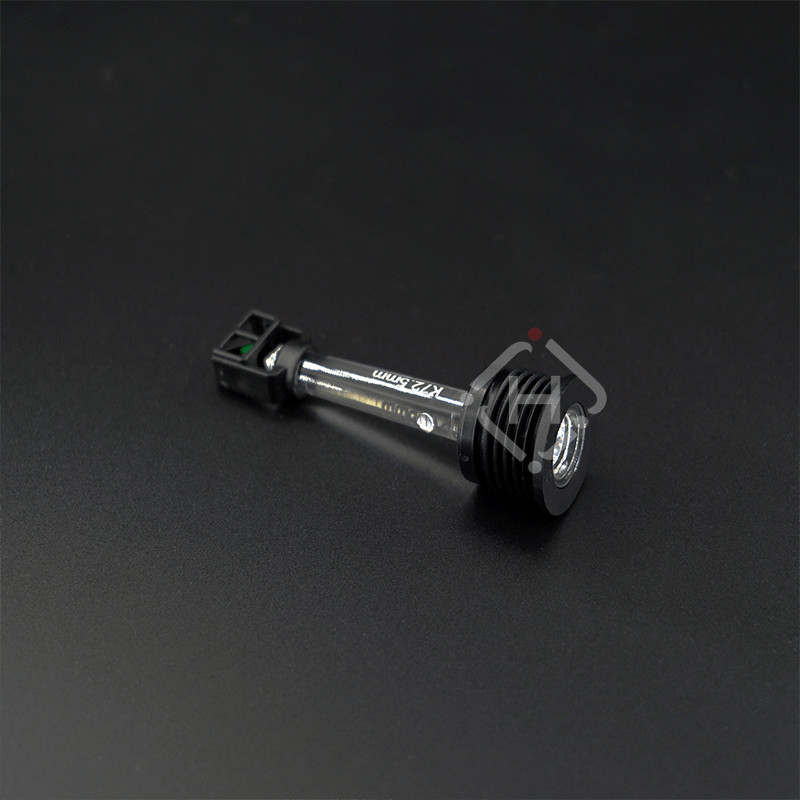

Battery Indicator Magic Eye
follow us
Overview
Specifications
FAQ
Quick Details
Brand Name: JHTD
Place of Origin: China
Material: PP/PC
Model Number: Battery magic eye
Battery Type: Sealed Rechargeable Battery
Color: General / Customized
Specification: 2 Sections
Application: VRLA Battery indicator
Usage: VRLA Battery
Product name: Battery display mete
Feature
The sealing cover selects high toughness, cold-resistant material, use the patent design of seepage prevention, press-in type, can be matched with an magic eye hole with an inner diameter of 20 or 19 respectively, can ensure no leakage within - 18 ℃ to 70 ℃.The color rendering body adopts optical resin material and precision molding technology to ensure the crystal clear display effect. Density ball uses special surface treatment, free movement and accurate display.
High Precision
Acid Resistance
Excellent Light Transmittance
High/Low Temperature Resistance
Easy Installation
Anti-Leakage
Impact Resistance
Plastic package pressed-in series - K1
Product name
Top diameter D
Top thickness h
Seal diameter M
Seal length l
Length L（mm）
Description
K1-A1
Φ22.9 mm
2.0 mm
Φ20.7 mm
17 mm
40/ 45/ 47.5
50/ 52.5/ 55/ 57.5
60/ 62.5/ 65/ 68/
70/ 72.5/ 75
Single ball
Cone color rendering bar
K1-A2
Φ21.3 mm
2.0 mm
Φ19.2 mm
17 mm
K1-B1
Φ22.9 mm
2.0 mm
Φ20.7 mm
17 mm
45/ 48
50/ 52.5/ 55/ 58
60/ 62.5/ 65/ 68/ 70
Double balls
Straight color rendering bar
K1-B2
Φ21.3 mm
2.0 mm
Φ19.2 mm
17 mm
K1-C1
Φ22.9 mm
2.0 mm
Φ20.7 mm
17 mm
45/ 48/ 50/ 55
60/ 65/ 70
Three balls
Straight color rendering bar
K1-C2
Φ21.3 mm
2.0 mm
Φ19.2 mm
17 mm
K1-D1
Φ22.9 mm
2.0 mm
Φ20.7 mm
17 mm
40/ 45/ 47.5
50/ 52.5/ 55/ 57.5
60/ 62.5/ 65/ 68
70/ 72.5/ 75
With O ring single ball
K1-D2
Φ21.3 mm
2.0 mm
Φ19.2 mm
17 mm
With O ring single ball
K1-E1
Φ22.9 mm
2.0 mm
Φ20.7 mm
17 mm
45/ 48/ 50/ 55/ 60/ 65
With O ring double ball
Q1: Will the battery magic eyes leak acid from the edge of the mounting hole?
Reply: Patent design, double leakage proof, our testing data is more 10times than GB standard.
Q2: How to guarantee the product quality？
Reply: All product must be tested and make sure qualified before delivery, without flaw. Testing standard is more 2times than GB standard.
