Battery Rubber O Ring
follow us
Overview
Specifications
FAQ
Feature

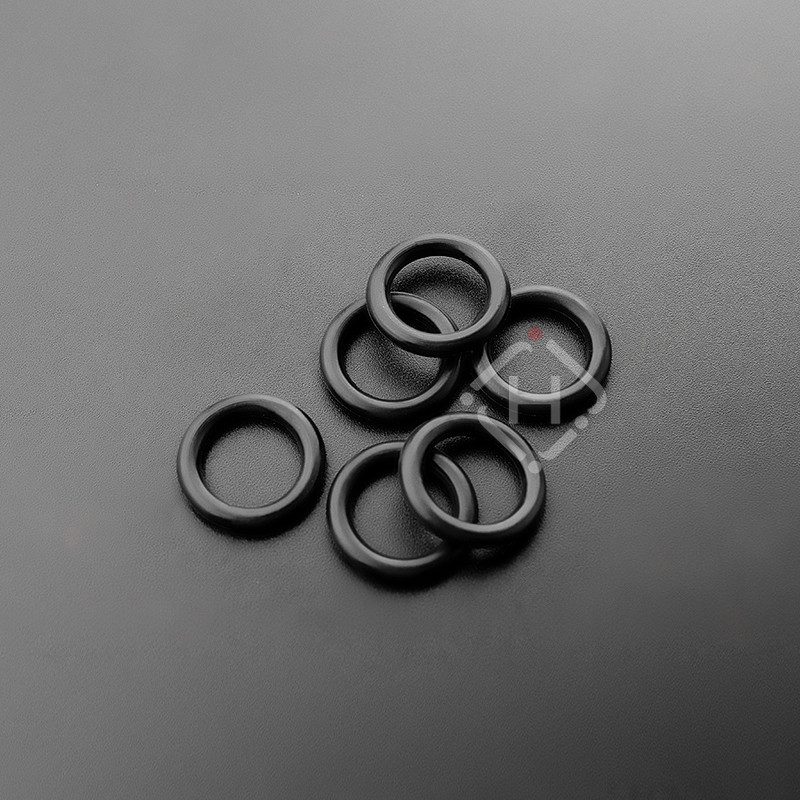

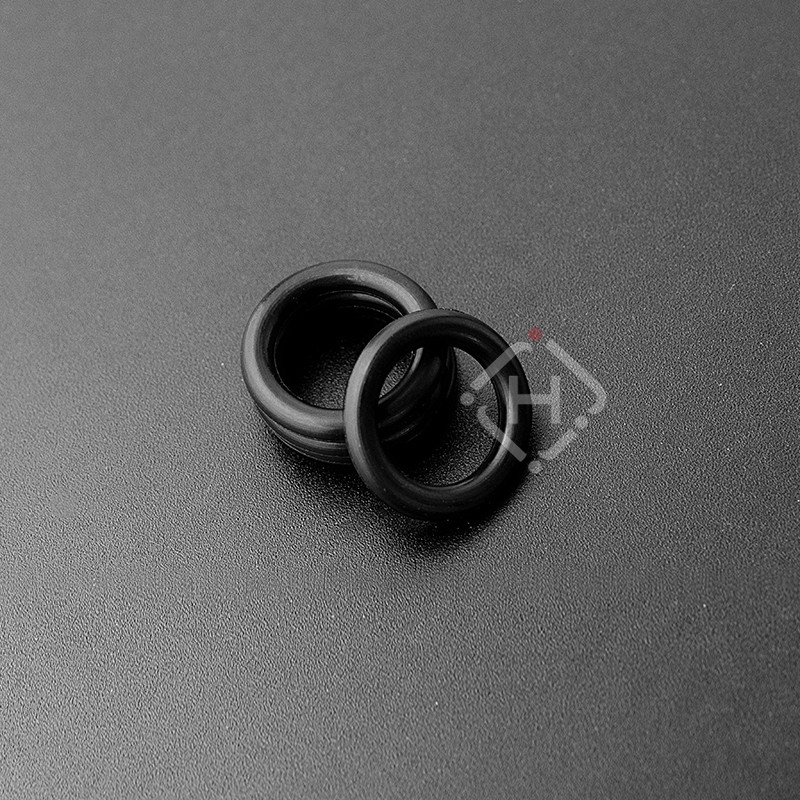

JH battery rubber o rings can resistant to the temperatures and chemicals encountered during battery operation and be able to withstand the conditions without losing their sealing properties or becoming damaged.
JH battery rubber o rings are manufactured with high precision to ensure they fit correctly within the designated groove or mating surfaces.
JH battery rubber o rings used have a long service life and resist degradation over time.
After the outsourced best and most suitable raw material are blended reasonably and tested according to designated procedures they will be made by good equipment and high-new technology,with each performance index fully satisfying the requirements for various batteries.
The battery rubber O ring has reasonable mold design, excellent production technology, which can ensure the excellent line sealing effect. We have different sizes of O ring, and can design and open mold according to customer’s requirement. Our O-ring material will not degrade or react with the substances inside the battery. We have different materials of rubber O ring, such as EPDM, CR, fluororubber.etc. We will choose suited material and optimal proportion according to customer’s different requirement of use, and meet customer’s requirement of specification.
Battery Rubber O RING (Out diameter*inner diameter*thickness,MM)
NO.
SIZE
NO.
SIZE
NO.
SIZE
NO.
SIZE
1
3.6*1.6*1
28
11.2*6.5*2.35
55
21.3*16.5*2.4
82
28.3*24.8*1.73
2
5.8*3.5*1.15
29
12.6*8.8*1.9
56
21.5*14*3.75
83
28.5*18.5*5
3
6*3*1.5
30
12.7*8.5*2.1
57
21.8*13.5*4.15
84
28*88*21.82*3.53
4
7*3.2*1.9
31
12.8*7.5*2.65
58
22*16*3
85
30*21*4.5
5
7*4*1.5
32
13*9*2
59
22*18*2
86
30.4*19.8*5.3
6
7.2*3.6*1.8
33
13.2*8.5*2.35
60
22.7*17.1*2.8
87
30.5*21.8*4.8
7
7.6*3.6*2
34
14.5*8.5*3
61
23*13.5*4.75
88
31.5*27.5*2
8
7.6*3.8*1.9
35
15*10*2.5
62
23*15*4
89
32*24*4
9
7.8*4*1.9
36
15.1*11.7*1.7
63
23*17*3
90
34.5*24.5*5
10
8*3.2*2.4
37
15.5*9.8*2.85
64
23.5*17.5*2.75
91
35*24*5.5
11
8.*3.8*2.1
38
16*10.4*2.8
65
23.8*15*4.4
92
35.1*28*3.55
12
8*4*2
39
16*11.2*2.4
66
24*17*3.5
93
35.6*30*2.8
13
8*4.2*1.9
40
16.6*11.8*2.4
67
24.5*18*3.25
94
36*30*3
14
8*4.9*1.55
41
16.8*12.8*2
68
24.5*19*2.75
95
42*35*3.5
15
8.6*4.8*1.9
42
17*11*3
69
24.6*19.8*2.4
96
43*33*5
16
9*5*2
43
17.5*12.5*2.5
70
25.5*18.3*3.6
97
66*58*4
17
9.6*7*1.3
44
18*12*3
71
25.5*18.5*3.5
98
98.56*95*1.78
18
9.9*5.5*2.2
45
18*14.4*1.8
72
25.5*19.5*3
99
121.6*118*1.8
19
9.9*5.9*2
46
19*12*3.5
73
25.8*18.8*3.5
100
127*77*1.78
20
10.3*5.5*2.4
47
19.4*15*2.2
74
26*16.5*4.75
101
129*52*1.78
21
10.3*6*2.15
48
20*14*3
75
26*19*3.5
102
130.3*125*2.65
22
10.5*6.5*2
49
20*16*2
76
27*16.5*5.75
103
131.6*1.28*1.8
23
10.6*6.2*2.2
50
20.3*25.3*2.5
77
27*18*4.5
104
170.02*164.78*2.62
24
10.6*6.8*1.9
51
20.5*15.1*2.7
78
27.5*16.5*5.5
105
182.72*177.48*2.62
25
10.7*6.15*2.275
52
20.5*16.5*2
79
27.8*21.4*3.2
106
223.3*218*2.65
26
11*5*3
53
20.6*15.8*2.4
80
28*22*3
107
241.3*236*2.65
27
11*6*2.5
54
20.73*17.17*1.78
81
28.3*1.78
Q: Does the product have qualification certification?
A: Yes. Holds ISO9001 certification of registration and is a high-quality safety product.
Q: What if there is no desired size in the table?
A: There are still many sizes that have not been listed. You can consult customer service for specific information. If it is not a regular size, we can provide free mold opening service.
