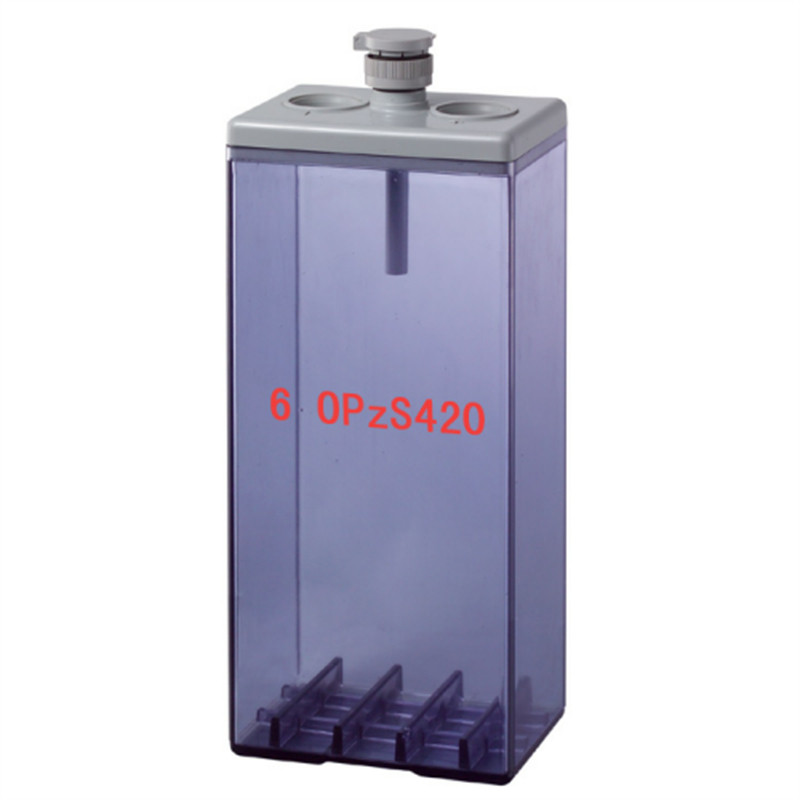

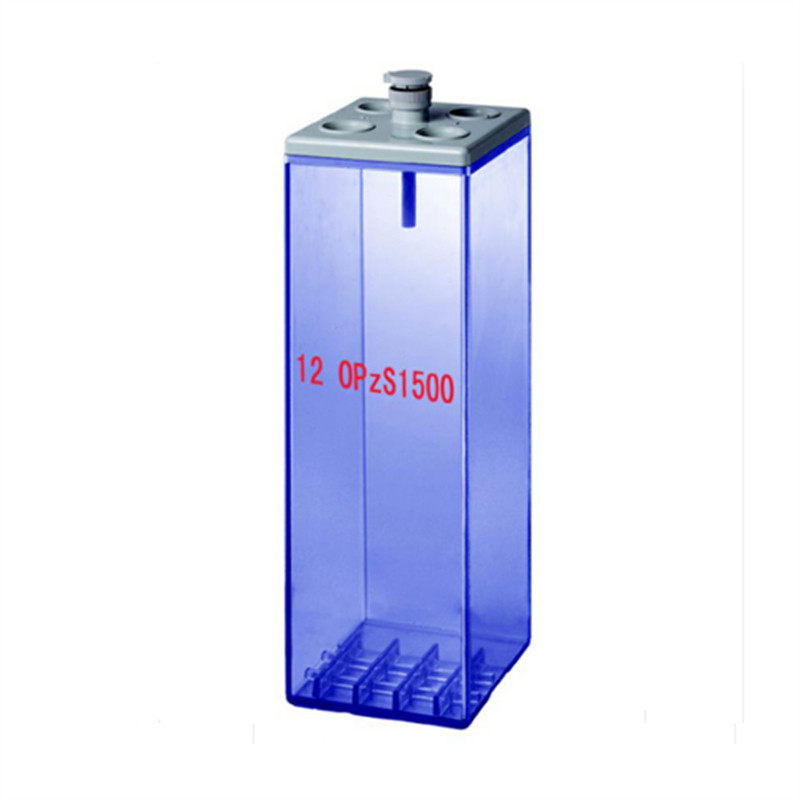

Tubular Battery Container

Battery Container

Tubular Battery Container

JHTD Tubular Battery Container used for tubular battery. That is the battery plate is a tubular plate, which is generally used on a traction battery. The traction battery is often used as a power battery due to its strong power.
Inquiry Now
Tubular Battery Container Add To Cart

follow us

  • Overview

  • Specifications

  • FAQ

  • Feature


    JHTD tubular battery container takes the advantages of varies of specifications and excellent produce process.

    CUSTOMIZATION: Available, JHTD Automobile Lead Acid Battery Container can be customized according to customer needs.


    Tubular Battery Container Function:


    1. Long service life

    The positive plate of the battery is tubular, and the negative plate is paste-coated; it has the advantages of long service life and good deep charge and discharge performance.


    2. High-strength polyester tube

    The use of high-strength polyester tube and PVC separator can effectively solve the problem of tube rupture and lead-supporting crystal short-circuit during use, and prolong the service life of the battery.


    3. Multi-corrosion resistant alloy

    The grid alloy is made of multi-corrosion resistant alloy, and the positive grid is pressure cast to solve the corrosion crack of the grid.


    4. The battery consistency is good

    Each single cell is connected by a wall welding, and the battery has good consistency.


    5. High-efficiency active substance formula

    The positive and negative active materials are formulated with high-efficiency active substances, which significantly increase the specific energy of the battery.


    6. Advanced plate curing, chemical conversion process

    Advanced plate curing and chemical conversion processes are used to increase the bonding force between the active material and the grid to extend battery life.


    7. Using PP / ABS / SAN materials

    The battery case and cover are made of PP / ABS / SAN material, and the cover is heat-sealed to avoid leakage during battery use.

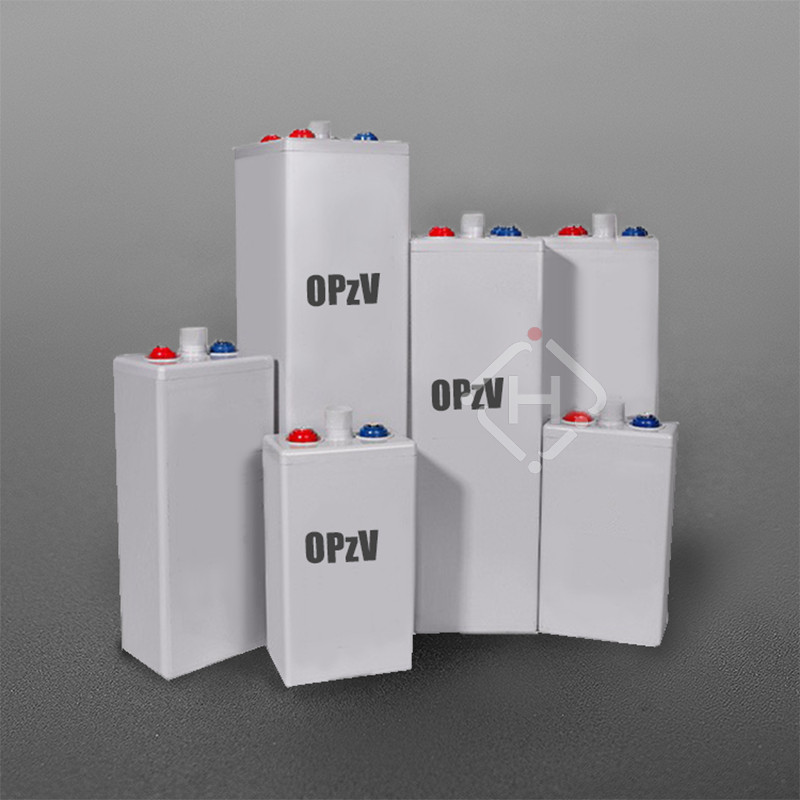

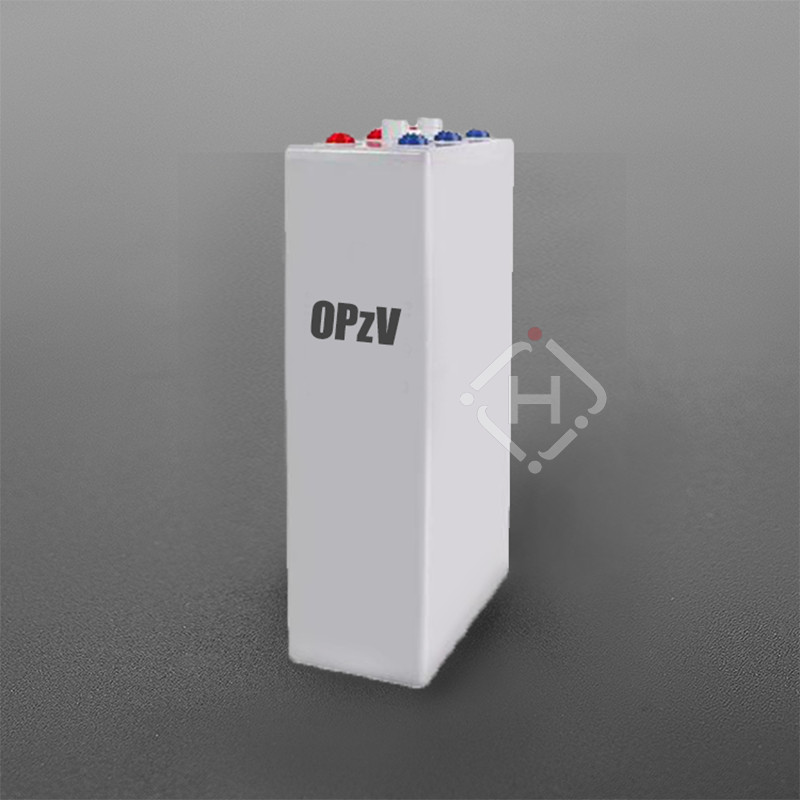

    Why Choose Our OPzV Tubular Battery Container:


    Superior Performance: Benefit from advanced tubular technology for exceptional battery life and performance.

    Dependable Energy: Enjoy a reliable and uninterrupted power supply, no matter the application.

    Hassle-Free Maintenance: Minimize upkeep efforts and costs with our maintenance-free design.

    Industry-Grade Quality: Invest in a battery container built to withstand the rigors of various environments.

    Expertise and Support: Access unparalleled technical assistance to ensure optimal installation and operation.

    Elevate your energy storage capabilities with our high-performance OPzV Tubular Battery Container. Invest in quality, reliability, and longevity.


  • Item

    L1 (mm)

    L2 (mm)

    Box Max Height(mm)

    Prism Height(mm)

    2PzS

    45

    40.5















    720













    15 / 20 / 25 / 35 / 40 / 50 / 60 / 110 / 135

    3PzS

    65

    59

    4PzS

    83

    77

    5PzS

    101

    95

    6PzS

    119

    113

    7PzS

    136.5

    130.5

    8PzS

    154.7

    148.5

    9PzS

    172.5

    165.5

    10PzS

    190.5

    183.5

    Note:
    1.    Box height can be customized as per required.
    2.    Lid type can choose assembly with/without rubber ring.


    For more sizes and types, please feel free to inquire.
