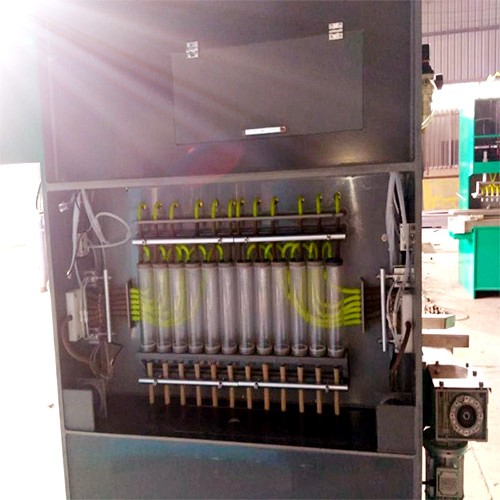

JHB-900M*2 Stations Fully Automatic Level Adjustment Machine (2 Stations)
Product features
1. Application: Used for liquid level adjustment after adding acid to car/tubular battery.
2. Operation: The machine will automatically feed two batteries into the machine through photoelectric sensor automatic positioning, automatically adjust the liquid level after adding acid to the battery, and then output the next process automatically after the adjustment.
3. Features: The machine adopts negative pressure acid absorption mode.
4. Main configuration: PVC frame, Stainless steel /PVC, PP plastic acid proofing mesh belt, Japanese Mitsubishi PLC, Delta color touch screen display, Taiwan technology pneumatic components, and well-known brands such as Schneider and CHINT and so on low-voltage electrical appliances.
Power: AC380V, 50HZ, 2KW
Air source: 0.1m3/min, 0.6Mpa
Volume(L×W×H): 1500mm×950mm×2000mm
Weight: 500Kg
Working table height: 720±25mm, and it can be adjusted.
Running direction: As per customers’ requirement.
