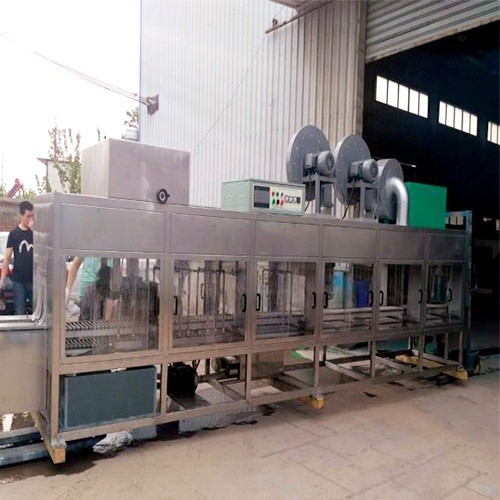

JHB-900M Fully Automatic Washing and Drying Machine (The total length is 8.5m)
Product features
1. Application: Used for cleaning and drying residual acid on the surface of car/tubular battery after formation.
2. Operation: The battery is automatically sent into the machine, the machine is completed automatically from cleaning to drying and so on, and the battery is automatically sent to the next process after cleaning and drying well.
3. Features: Total length is 8.5 meters, use tap water washing, the transparent window in two sides can open. There are a horizontal electric brush and two electric brushes in two sides, the electric brushes can be adjustable. After running water is rinsed well, a high-pressure fan is used to generate strong airflow to blow away the large particles of water on the surface of the battery. Hot air dry, electric heating.
4. Main configuration: 316L stainless steel frame, High pressure fan, brush, stainless steel chain plate, Taiwan technology pneumatic components, and well-known brands such as Schneider and CHINT and so on low-voltage electrical appliances.
Conveying speed: 0.5m/min - 2m/min
Electric power: AC380V, 50HZ, 20KW
Volume(L×W×H): 8500mm*1200mm*2200mm
Weight: 2000kgs.
Working table height: 720±25mm, and it can be adjusted.
Running direction: As per customers’ requirement.
